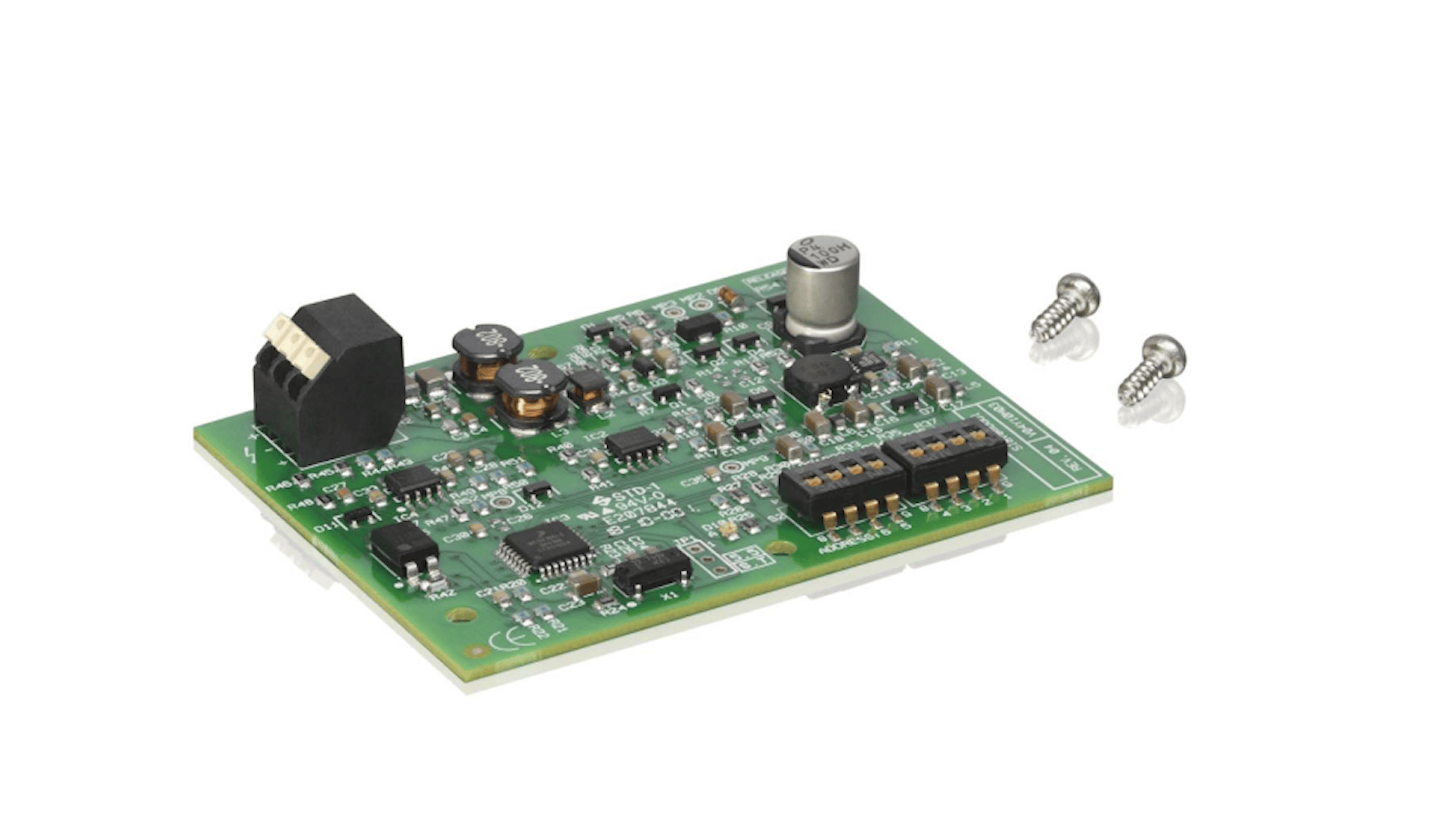

EOL 8001
Features
The End-of-line (EOL) supervision module monitors the integrity of a loudspeaker line and can be used in applications where continuous business music is requested.
In combination with the EOL master integrated in every Controller and Router of the PROMATRIX 6000 system, or in every Amplifier of the PROMATRIX 8000 system, the loudspeaker line can be monitored for short and open circuits.
The status LED on the module can be used to check the installation. For more information, refer to the user documentation for the IRIS-Net, Controller, Router, or Amplifier.
In combination with the EOL master integrated in every Controller and Router of the PROMATRIX 6000 system, or in every Amplifier of the PROMATRIX 8000 system, the loudspeaker line can be monitored for short and open circuits.
The status LED on the module can be used to check the installation. For more information, refer to the user documentation for the IRIS-Net, Controller, Router, or Amplifier.
- Compatible with 100 V, 70 V, or 50 V loudspeaker lines
- Module is powered via loudspeaker line (pilot tone)
- A single loudspeaker line can have multiple modules
- Up to 60 modules can be connected to one amplifier output channel
- EN 54-16 system certification
Specifications
Protection & Environmental
- Ambient Temperature
EN 50581
- Certifications
EN 54-16
Dimensions & Weight
- Net weight
30 g
- Dimensions (H x W x D) (mm)
15 mm x 78 mm x 60 mm
Identification
- Series / Family
EOL
- Material Number
F.01U.140.823
