EVOLVE 70
Details

BIGGER. BETTER. COLUMN.

Three pieces, two clicks, one system - and a whole lot of decibels for you to enjoy.
Loading
EVOLVE 70

EVOLVE 70

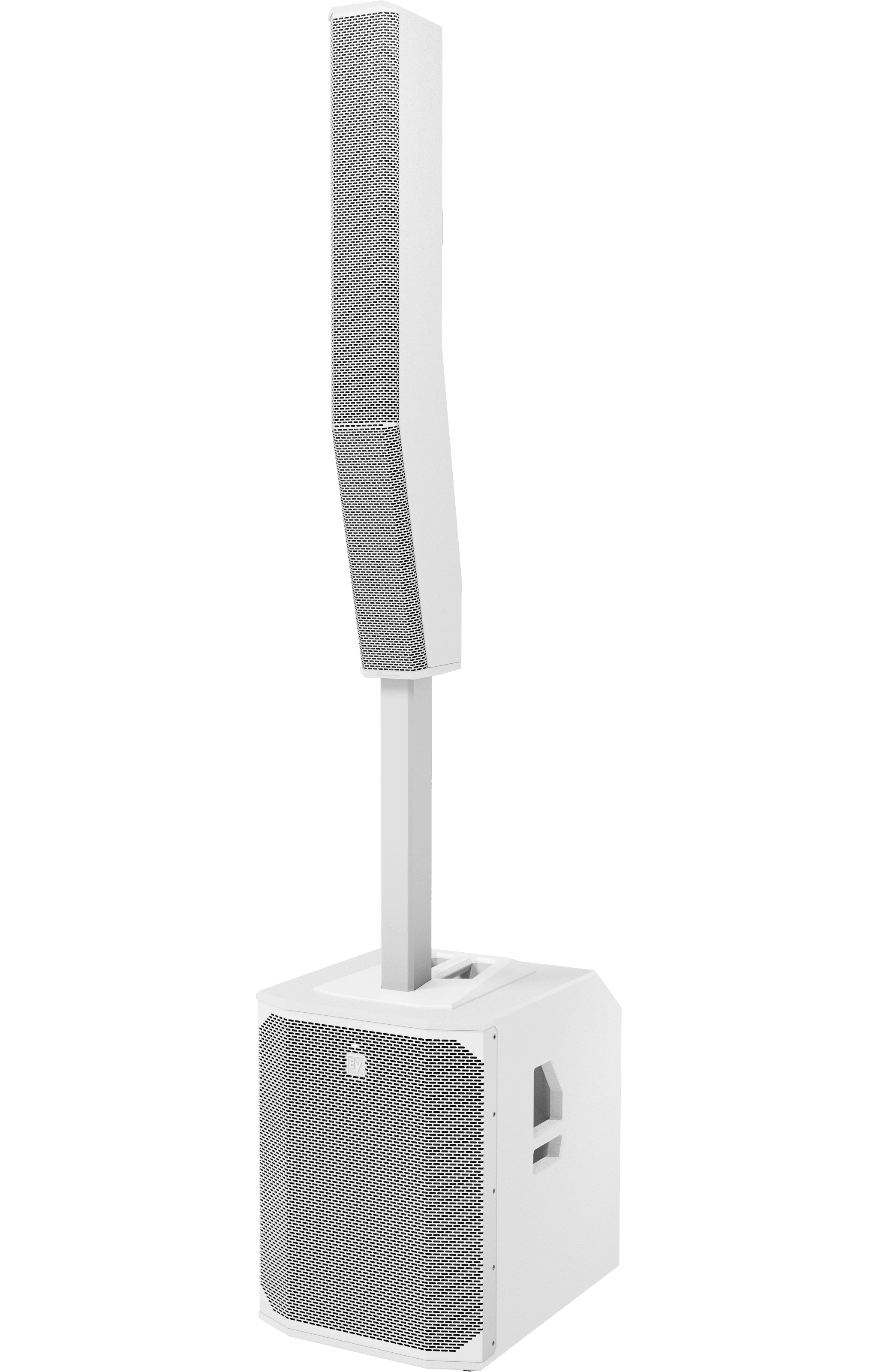

15" High-end Portable Column Loudspeaker System

Variants
Documentation & Downloads

Anchor the rig with the sub that drives it. This is the EVOLVE 70's 15-inch subwoofer with a 3-inch voice coil, housing the 2,000 W amplifier and connections for the whole system: XLR/TRS combo mic/line, stereo RCA, AES/EBU, and Bluetooth true wireless stereo. Coverage forms at 120° by 25° with a 160 Hz crossover to the column, and QuickSmart App control ties it to other EVOLVE speakers. The plywood cabinet wears a polyurea coating.

Key Features

Lay the Foundation
15-inch woofer with a 3-inch voice coil anchors the EVOLVE 70 system.
Power the Whole Rig
Onboard 2,000 W amplifier feeds both the subwoofer and the column.
Connect Everything Here
XLR/TRS combo, stereo RCA, AES/EBU digital, and Bluetooth true wireless stereo.
Take the Road
Plywood cabinet with a tough polyurea coating in a black finish.
Control as a System
160 Hz crossover to the column and QuickSmart App control across EVOLVE speakers.
Feed the Next Box
XLR mix out, XLR sub out, and AES/EBU thru pass signal down the line.

EVOLVE 70 - EAST SIDE BOWL

Specifications

Acoustic Performance

Frequency response low (-3 dB) (Hz)

40

Frequency response high (-3 dB) (Hz)

18000

Frequency Response

40 Hz – 18,000 Hz

Power & Amplification

Amplifier Watt Peak

2000

Powered

true

Connectivity & I/O

Connectivity

powerCON® power input Dual XLR/TRS combo jack mic / line inputs with switchable 48V phantom power Stereo XLR/TRS combo jack line input Stereo RCA line input XLR AES/EBU input XLR AES/EBU thru XLR Mix out XLR Sub out RJ45 QuickSmart Link connector Bluetooth Stereo input with TWS
