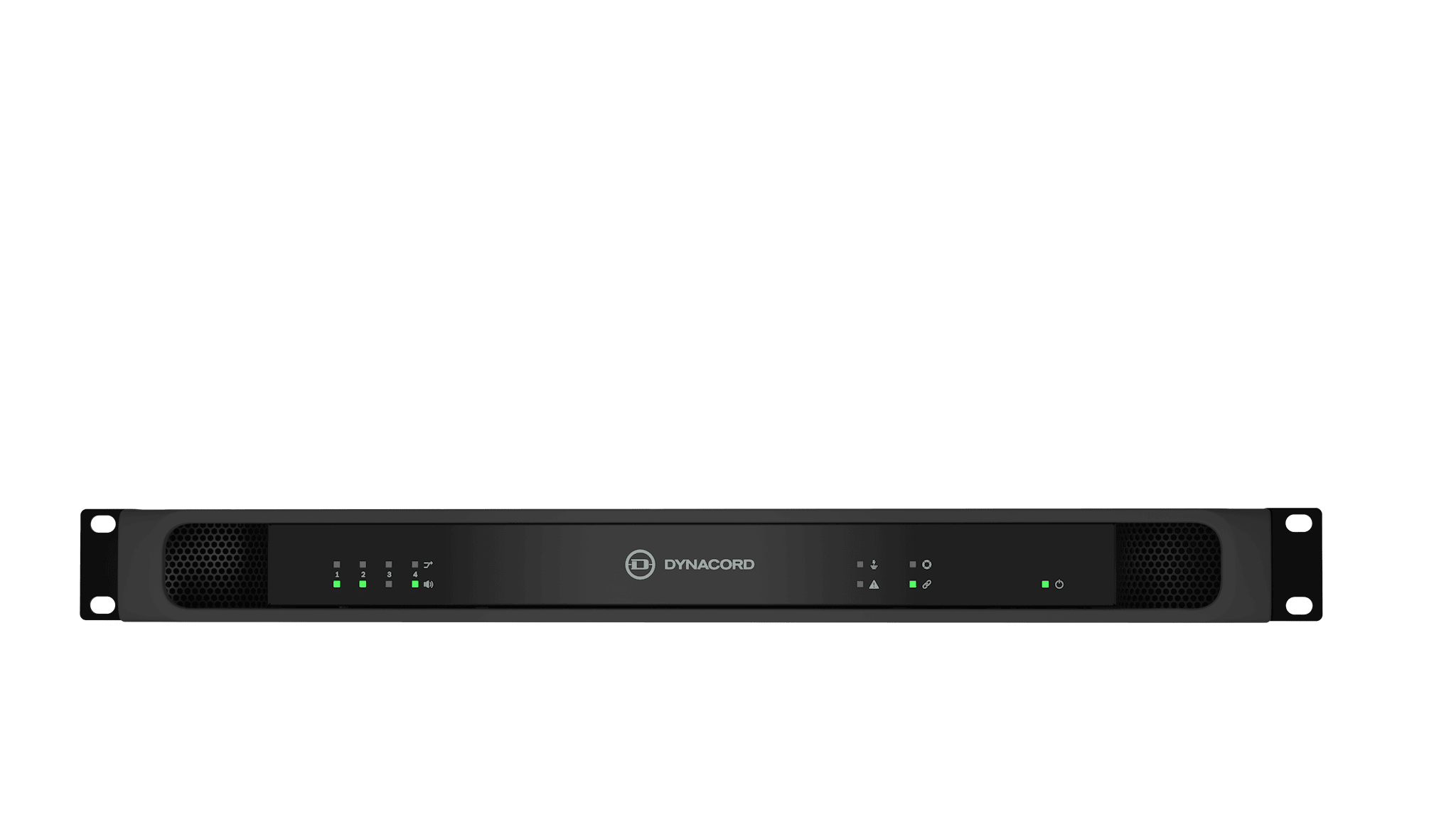

PM9-AD604
Build redundancy in, not bolt it on. The PM9-AD604 delivers 600 W across four channels for PROMATRIX 9000 systems, with a fifth spare channel that automatically takes over a failed channel — settings intact. Dual OMNEO network ports, dual 48 VDC inputs, and an analog lifeline keep audio flowing if the network or a supply drops. Per-channel EQ, delay, and limiting live in 1U. For voice-alarm sites where silence is not an option, it keeps talking.
Key features
Stay on air
built-in spare channel auto-replaces a failed channel with settings preserved.
Redundant by design
dual OMNEO ports plus dual 48 VDC inputs with failover.
Lifeline backup
analog input drives the spare channel if the network fails.
70 V or 100 V
direct-drive output, up to 600 W total across the amplifier.
Process in the box
per-channel level, parametric EQ, limiting, and delay in 1U.
Run A and B lines
every channel supports two independent loudspeaker groups, A and B, for redundant wiring topologies.
