RE3 Accessory PASP
RE3-ACC-PASP
ONE ANTENNA PAIR. TWO RECEIVERS.

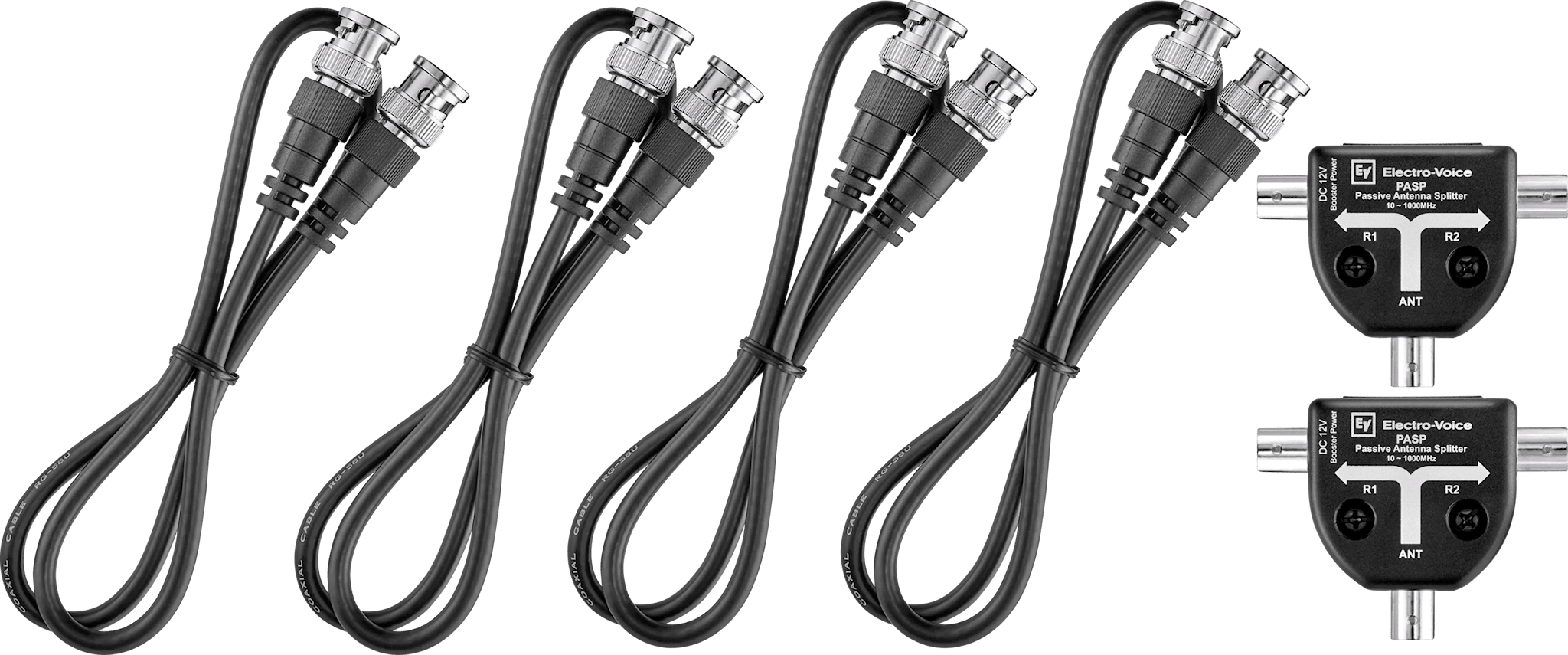

A 1 x 2 passive antenna splitter kit that feeds two RE3 receivers from a single antenna pair.
Cut the antenna clutter before it starts. The RE3-ACC-PASP is a 1 x 2 passive antenna splitter kit that splits one antenna pair across two RE3 receivers, so a growing channel count doesn't mean a forest of whips. Passive means no power supply to find and nothing extra to fail in the rack. Small theater, conference room, house of worship expanding from four channels to eight: split the signal and keep the front of the rack clean.
Key features
Feed two receivers from one pair
1 x 2 passive antenna split.
Fewer antennas in the air
One antenna pair covers a two-receiver stack.
Nothing to power
Passive design, no supply and no extra failure point.
Broadband coverage
Splitter rated across a wide 10-1000 MHz range.
Built for the RE3 rack
Pairs cleanly into the wider RE3 antenna chain.
Room to grow
Built for rooms expanding from four channels to eight.
Specifications
Impedance
- Nominal Impedance
50 Ω
- LF Impedance
50 Ω
Connectivity & I/O
- RF Frequency Band
10 - 1,000 MHz
Construction & Materials
- Color
Black
Dimensions & Weight
- Net weight
8.3 oz. (235 g)
Identification
- Series / Family
RE3 WIRELESS
- Material Number
F.01U.353.088
